The simulator was developed and manufactured on the basis of combat weapon maintaining functionality of mechanical units requiring from the shooter to be familiarized with proper manual handling with the real pistol.

Main dimensions and weight of the simulator remain the same as of the combat weapon.

Mechanisms motions and reloading of the simulator are carried out by high-pressure pneumatic system powered by CO2 stored in gas tanks placed in the magazine.

Communication between simulator and computer controller is performed wireless by Weapon Communication Module (MKB – Modul Komunikacji Broni), which also provides power supply for the electronic circuits.

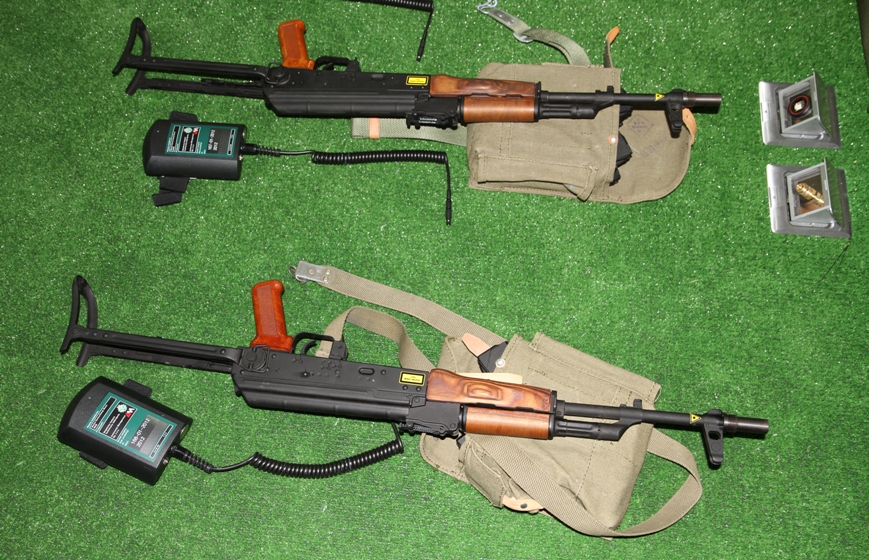

Rifle simulator, for versions AKMSN and AKML (versions with side mounting) cooperates with PCS-5 night sight simulator. Then communication between simulator and computer controller as well as electric supply are performed via wire. Using, for versions AKMN and AKML, specialized rail mount (“adapter” from side to upper mounting) makes possible to use for simulated shooting reflector (and different) sights (requires to be agreed with the manufacturer)

The simulator contains set of equipment according to military standards. It is possible to retrofit it according to user needs after consultation with the manufacturer.
